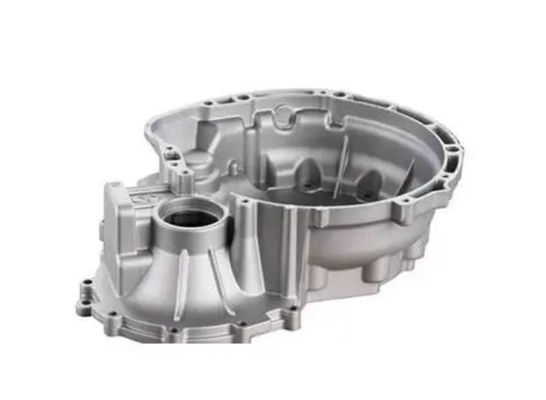

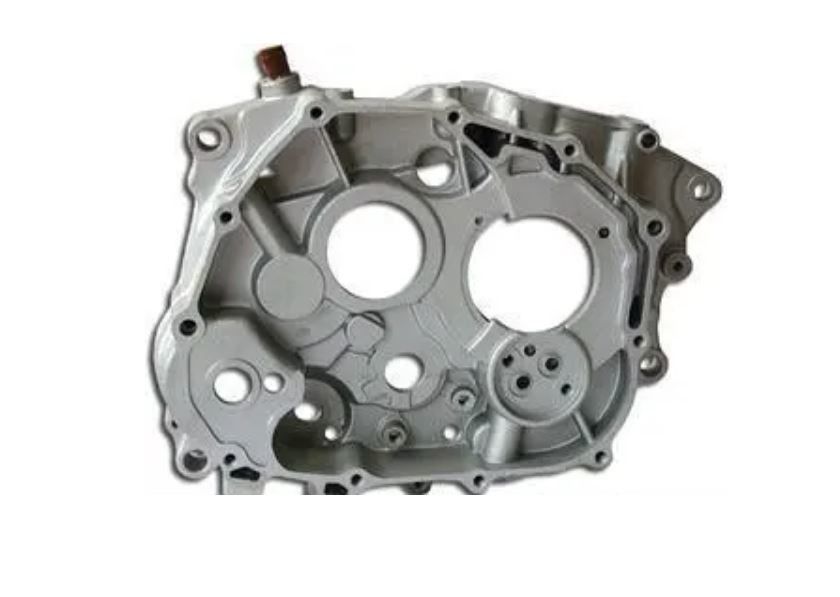

High Precision Die Casting Mold For Metal Tooling Making ODM OEM

High Precision Die Casting Mold For Metal Tooling Making ODM OEM

High Precision Die Casting Mold For Metal Tooling Making ODM OEM
  • High Precision Die Casting Mold For Metal Tooling Making ODM OEM
  • High Precision Die Casting Mold For Metal Tooling Making ODM OEM
Product Details:
Place of Origin: Dongguan China
Brand Name: Huaview
Certification: ISO9001
Model Number: DIe casting mold
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: offer price base on the drawing
Packaging Details: wooden case packing
Delivery Time: 20 -50days T1
Payment Terms: T/T
Supply Ability: 40 sets per month
Contact Now
Detailed Product Description
Lead Time: 3-6 Weeks Material: Aluminum Alloy
Mold Base: LKM/HASCO/DME Mold Cavity: Single/Multi
Mold Cooling: Water/Oil/Air Mold Core: Steel/8407/H13/1.2344/420SS
Mold Ejection: Pin/Stripper Plate/Ejector Sleeve Mold Gate: Hot/Cold Runner
Mold Hot Runner: Yudo/Husky/Incoe/Mastip/DME Mold Life: 50,000-100,000 Shots
Mold Testing: Leak/Pressure/Functional/Appearance Processing: CNC/EDM/Wire Cutting/Grinding/Drilling
Size: Customized Surface Finish: Polishing
Highlight:

High Precision Die Casting Mold

,

Die Casting Mold ODM

,

die casting mould OEM

ODM OEM High Precision Metal Tooling Make Mold Magnesium Zinc Aluminum Alloy Die Casting Mould
Product Description
Material Aluminum alloy: ADC12, ADC10, A360, A380, A356, 6061, 6063
Magnesium alloy: AZ91D, AM60B, Zinc alloy: ZA3#,ZA5#,ZA8#
Processing Craft Drawings→ mould making → die casting →rough machining → CNC machining→surface treatment →product checking→ packing →delivery
Tolerance ± 0.02mm
Surface Treatment Electroplating, Chrome Plating, Zinc Plating, Nickel plating, Electrophoresis, Anodization, Polishing, Sandblasting, Passivation, Powder coating, Spray painting, Etc.
Quality Assurance ISO9001:2015 Certified, SGS Certification
Quality Guarantee Two years
Inspection 1.Foundry in-house: 100% inspection on critical dimension; 100% on appearance.
2.Third Party inspection available upon requirement
Mainly Testing Facility Three-dimensional measuring instrument (CMM), Salt spray test box, Dynamic balance detector, Pneumatic detection
Features & Advantage

1.High machining accuracy, the flatness within 0.1mm.

2.High strength and not easy to deform, has good electrical and thermal conductivity.

3.High finish appearance,smooth surface roughness is Ra1.6 after machining.

4.The machining precision is high and the assembly structure is seamless.

5.No granules, no spots and no painting peel off in appearance.

6.Smooth appearance, corrosion resistance.

Standard 1.Aluminum alloy: ISO3522-84, ASTMB85-96, JISH5302:2000, EN1706:1998
2.Magnesium alloy: ISO/DIS16220-1999, ASTMB93/B93M-98, EN1754-1997
3.Zinc alloy: ISO301-1981,ASTMB327-98, JISH2021:1999, EN12844:1998
Application 3C industry, lighting decoration, electrical appliances, auto parts, furniture parts, electric tool, medical equipment, intelligent automation equipment,other metal casting parts.



 Main Product

High Precision Die Casting Mold For Metal Tooling Making ODM OEM 0

Features:

  1. Material: The mold is made of high-quality aluminum alloy, such as ADC12, ADC10, A360, A380, A356, 6061, and 6063, ensuring durability and strength.
  2. Mold Base: The mold base is constructed with LKM/HASCO/DME standards, providing a solid foundation for the mold.
  3. Mold Cavity: The mold can be designed with a single cavity or multiple cavities, depending on the specific requirements.
  4. Mold Cooling: The mold incorporates efficient cooling systems using water, oil, or air to ensure proper temperature control during the casting process.
  5. Mold Core: The mold core is made of high-grade steel, including 8407, H13, 1.2344, and 420SS, offering excellent durability and heat resistance.
  6. Mold Ejection: The mold features various ejection methods, such as pin, stripper plate, and ejector sleeve, to facilitate the removal of casted parts.
  7. Mold Gate: The mold gate can be designed as a hot runner or cold runner system, allowing for precise control of molten metal flow.
  8. Mold Hot Runner: The mold can be equipped with renowned hot runner systems like Yudo, Husky, Incoe, Mastip, and DME.
  9. Mold Life: The mold has a long lifespan, with a capacity for 50,000 to 100,000 shots, ensuring consistent performance over time.
  10. Mold Testing: The mold undergoes comprehensive testing procedures, including leak, pressure, functional, and appearance tests, to ensure high-quality results.
  11. Processing: The mold is processed using advanced techniques like CNC machining, EDM (Electrical Discharge Machining), wire cutting, grinding, and drilling.
  12. Size: The mold can be customized according to specific size requirements.
  13. Surface Finish: The mold surface undergoes polishing, resulting in a smooth and refined appearance



About us

Huavis is a factory that professionally design and produce magnesium, aluminum, zinc alloy die casting, sand casting, gravity casting, stamping, aluminum profiles, and CNC machining. It provides all-round production services from the design and development of mould to the forming and post-processing of casting products and surface treatment.



The products are mainly used on 3C industry, lighting decoration, electrical appliances, auto parts, furniture parts, electric tool, medical equipment, intelligent automation equipment and so on. It is exported to Europe,America and Southeast Asia.



FAQ
Q1. Are you a factory or trade company?
We are a factory located in Dongguan China. Welcome to visit our factory.

Q2. What kind of production service do you provide?
CNC machining, stamping, injection molding, die casting and assembly.

Q3. How about the lead time?
Sample: 7 days Mass production: 2-3 weeks

Q4. How about your quality?
We have got ISO9001:2015 and IATF16949 certificates.
We will make the operation instruction once the sample is approved.
We will 100% inspect the products before shipment.
Transactions can be through Alibaba's trade assurance.

Q5. What is your quotation element?
Drawings or Sample, Material, Finish, and Quantity.

Q6:Can you make machining parts based on our samples?
Yes, we can make measurement based on your samples to make drawings for machining partsmaking.

Q7. What is your payment term?
Mold: 50% prepaid, balance after sample approval.Goods: 50% prepaid, balance T/T before shipment.

Q8: ls it possible to know how are my products going on without visiting your company?
We will offer a detailed production schedule and send weekly reports with digital pictures and videoswhich show the machining progress.
