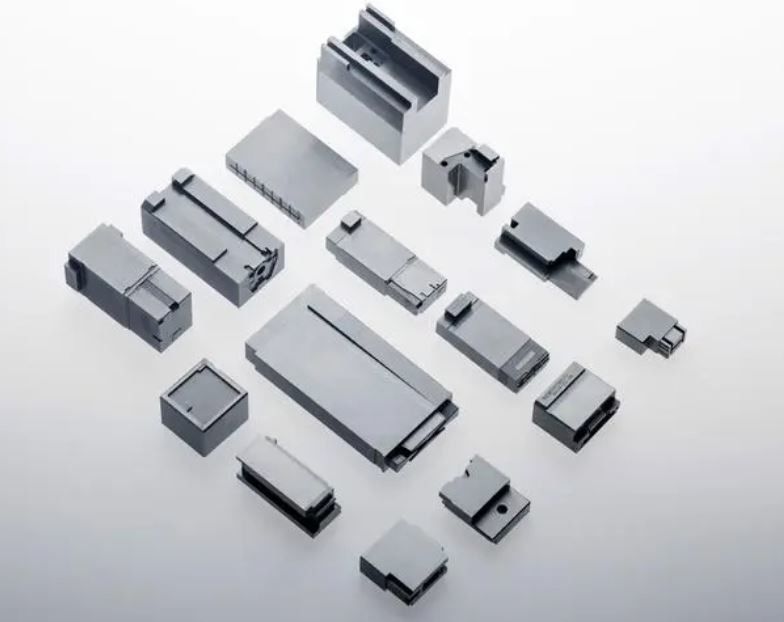

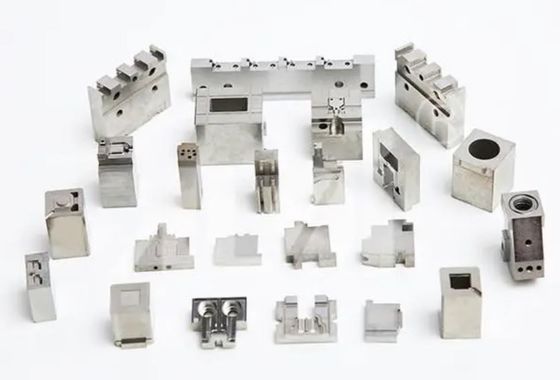

H13 Steel Precision Mold Components Insert With CNC Machining

High Precision Mold Core Insert / Core And Cavity Inserts Made Of H13 Steel



The H13 Steel Precision Mold Components Insert with CNC Machining is a high-quality mold component designed for precision applications. It is made from H13 steel, known for its excellent toughness, heat resistance, and wear resistance. The insert undergoes CNC machining, wire cutting, EDM, and grinding processes to achieve precise dimensions and a smooth surface finish.





Name	high precision mold core insert / core and cavity inserts
Product material	SKD11/61,8407,S136,1.2083,Tungsten steel, etc.Or as customer's requests.
Processing methods	Forings,CNC milling and turning,Grinding,Casting,Broaching,etc.
Processing equipment	CNC machine,Automotic lathe machine,EDM machine,Stamping lathes,Wire-cutting machine,Milling/Grinding machine,Punching/Drilling machine,Ultrasonec cleaning machine,etc.
Detection equipment	Projector,Calliper,Height gauge,Screw gauge,Hardness gauge,etc.
surface treatment	Plating,Painting,Powder coating,Anodization,Ball blasting Vibration grinding,Polishing,Brushing.or according to customer’s requests.
Design software	UG,PROE,CAD etc.
Specification	14 years machining parts processing experience;Precision tolerance less than 0.001mm;Depends on customer’s requirements.
Delivery	Normally shipping in 7-15 days after payment,or according to customer's requests.
Payment terms	T/T,
Package	Custom cnc precision machining mould parts,cnc spare parts.Inner packing with recycle plastic box and anticorrosive oil, outer with sponge and PE bags, or as customer's requirements.































































The benefits for using the mold components in the injection mold.

1.For easy modifying a mould

2.For easy drawing out the gas

3.For easy machining

4.For convenience in changing

5.For saving mold material

6.For increasing mold lifetime

Note: If the master cavity need to do the mold insert , it will get the line of insert.



Question about us.

1. Q: What is Huaview product range?
2. 1) Precision Stamping parts (metal battery holder, battery contact , terminal , shrapnel ,etc. )

2) Injection parts (Plastic battery holder ,Connector , Slide Switches etc)

3) Mold Components ( focus on precision injection connector mold , precision injection )

4) CNC Lathe Parts 5) Special Spring



2. Q: what is your MOQ for the products?

A: 1) For most of our products, we have no MOQ .



3. Q: Will you fulfill the FREE POLICY of exchange free products and some services?
4. 1) 100% to exchange the free policy as our description



4. Q: How to get a quotation?
5. Please send us your inquiry by Email, We need to know the following information for your project:
   1. Product information: Quantity, Specification(size ,material, and packing requirement) or other technology requirement,
   2. a> if you have a drawing that will be perfect for us .
   3. b> if not, don’t worry we can draw it for your approval before producing it .



5. Q: How to order?
6. Please send us your purchase order by Email or Fax, or you can ask us to send you Proforma Invoice (P/I) for your order. We need to know the following information for your order:

1) Product information: Quantity, Specification(size ,material, and packing requirement) or other technology requirement, the drawing of your project will be the best.

2) Delivery time required.

3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.

4) Forwarder's contact details if there is any in China.



6. Q: How long and how to get sample from us?
7. 1) If you need some sample to test ,we can make as per your request, please provide us PDF, DWG or STEP format file for making. You should pay for the transportation freight of samples and sample cost (cost from USD100 to USD600, depend on the project), while the sample cost can be refundable if order is confirmed and QTY goes up to 300,000pcs or depends on your product amount .

2) Lead time for making sample: about 7 days

3) The transportation freight of samples: the freight depends on the weight and packing size and your area.
