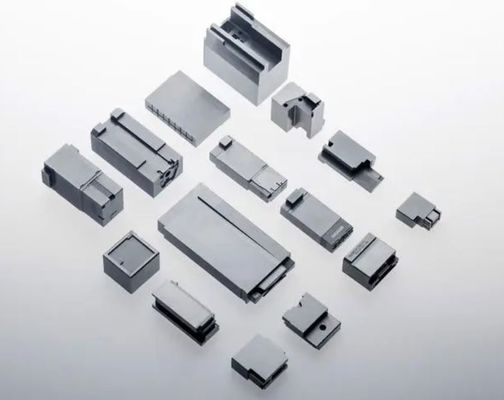

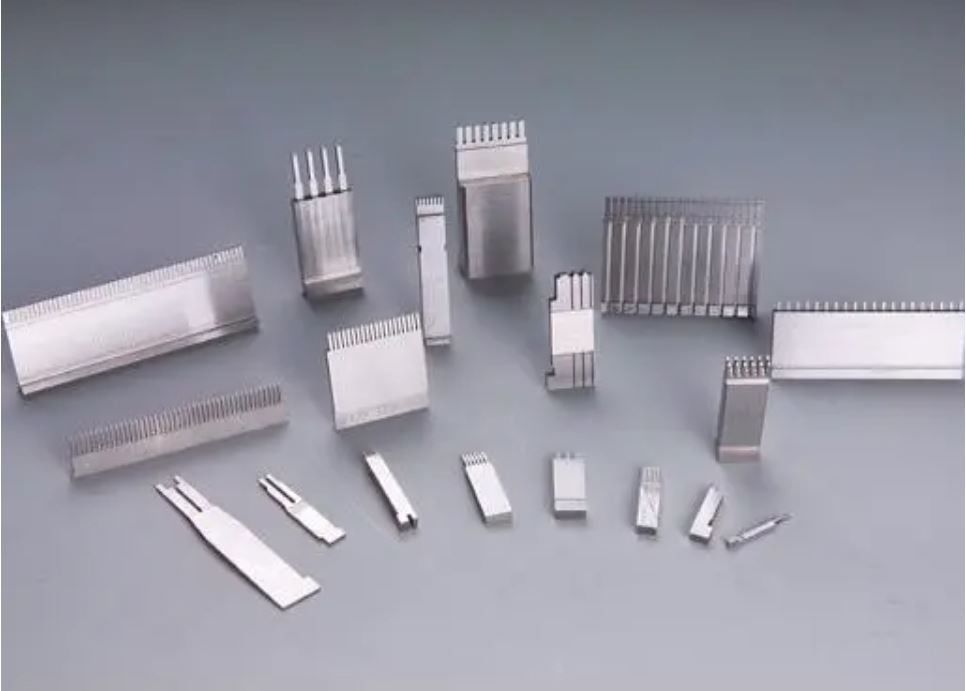

Precision Mold Core Insert And Cavity Insert 2344 H13 Material

High Precision Mold Core Insert / Core And Cavity Inserts For Electrical Connector Part



Name	high precision mold core insert / core and cavity inserts
Product material	SKD11/61,8407,S136,1.2083,Tungsten steel, etc.Or as customer's requests.
Processing methods	Forings,CNC milling and turning,Grinding,Casting,Broaching,etc.
Processing equipment	CNC machine,Automotic lathe machine,EDM machine,Stamping lathes,Wire-cutting machine,Milling/Grinding machine,Punching/Drilling machine,Ultrasonec cleaning machine,etc.
Detection equipment	Projector,Calliper,Height gauge,Screw gauge,Hardness gauge,etc.
surface treatment	Plating,Painting,Powder coating,Anodization,Ball blasting Vibration grinding,Polishing,Brushing.or according to customer’s requests.
Design software	UG,PROE,CAD etc.
Specification	14 years machining parts processing experience;Precision tolerance less than 0.001mm;Depends on customer’s requirements.
Delivery	Normally shipping in 7-15 days after payment,or according to customer's requests.
Payment terms	T/T,
Package	Custom cnc precision machining mould parts,cnc spare parts.Inner packing with recycle plastic box and anticorrosive oil, outer with sponge and PE bags, or as customer's requirements.

































































Features:

1. Application: The inserts are suitable for injection molds, stamping tools, and die casting molds, enabling the production of plastic parts, stamped components, and die-cast parts.
2. Customized Design: The inserts can be customized according to specific requirements, allowing for flexibility in design and ensuring a precise fit within the mold.
3. High Precision: With a tolerance of ±0.005mm, the inserts provide exceptional accuracy, contributing to the production of high-quality molded parts.
4. Durable Materials: The inserts are made from 2344 H13 material and other high-quality alloys, ensuring their durability and longevity.
5. Various Processes: The inserts undergo CNC machining, wire cutting, EDM, and grinding processes to achieve precise dimensions and smooth surfaces.
6. Surface Treatment: The inserts can be polished to enhance their appearance and facilitate easy mold release.
7. Quick Delivery: Huaview has a monthly production capacity of 40 sets, ensuring prompt delivery within 5-10 working days.
8. Reliable Packaging: The inserts are carefully packaged in bubble packs and carton boxes to prevent damage during transportation.
9. Trusted Brand: Huaview is a reputable brand with ISO9001 certification, guaranteeing the quality and reliability of their products.





The benefits for using the mold components in the injection mold.

1.For easy modifying a mould

2.For easy drawing out the gas

3.For easy machining

4.For convenience in changing

5.For saving mold material

6.For increasing mold lifetime

Note: If the master cavity need to do the mold insert , it will get the line of insert.



Question about us.

1. Q: What is Huaview product range?
2. 1) Precision Stamping parts (metal battery holder, battery contact , terminal , shrapnel ,etc. )

2) Injection parts (Plastic battery holder ,Connector , Slide Switches etc)

3) Mold Components ( focus on precision injection connector mold , precision injection )

4) CNC Lathe Parts 5) Special Spring



2. Q: what is your MOQ for the products?

A: 1) For most of our products, we have no MOQ .



3. Q: Will you fulfill the FREE POLICY of exchange free products and some services?
4. 1) 100% to exchange the free policy as our description



4. Q: How to get a quotation?
5. Please send us your inquiry by Email, We need to know the following information for your project:
   1. Product information: Quantity, Specification(size ,material, and packing requirement) or other technology requirement,
   2. a> if you have a drawing that will be perfect for us .
   3. b> if not, don’t worry we can draw it for your approval before producing it .



5. Q: How to order?
6. Please send us your purchase order by Email or Fax, or you can ask us to send you Proforma Invoice (P/I) for your order. We need to know the following information for your order:

1) Product information: Quantity, Specification(size ,material, and packing requirement) or other technology requirement, the drawing of your project will be the best.

2) Delivery time required.

3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.

4) Forwarder's contact details if there is any in China.



6. Q: How long and how to get sample from us?
7. 1) If you need some sample to test ,we can make as per your request, please provide us PDF, DWG or STEP format file for making. You should pay for the transportation freight of samples and sample cost (cost from USD100 to USD600, depend on the project), while the sample cost can be refundable if order is confirmed and QTY goes up to 300,000pcs or depends on your product amount .

2) Lead time for making sample: about 7 days

3) The transportation freight of samples: the freight depends on the weight and packing size and your area.
