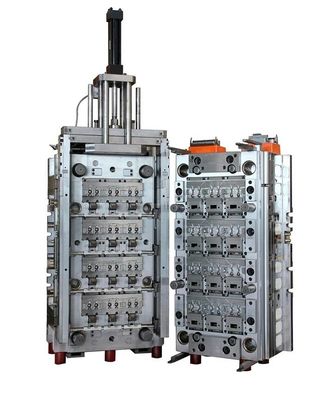

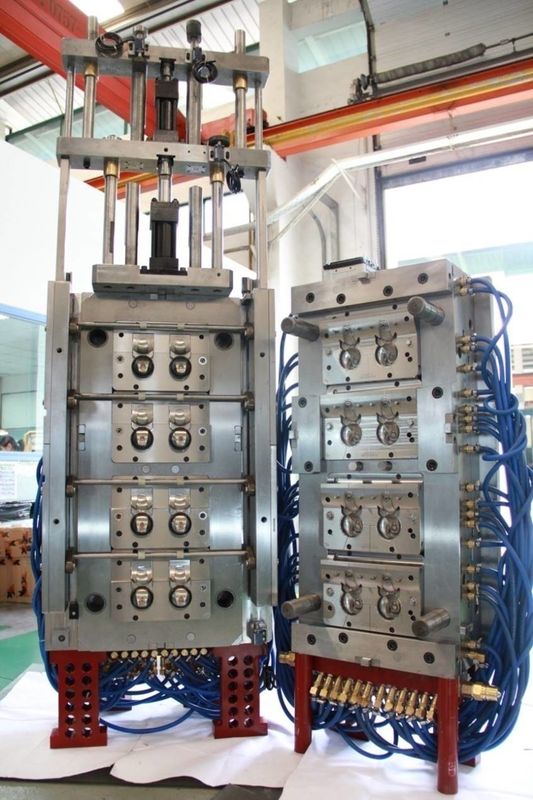

Stainless Steel Mold Base For Precision Injection Multi Cavity Mold Thin Wall Molding
Product Description:
Precison mold Base, also known as injection Moulding Base with precision diemension of all plate, is a type of mold for injection molding process. It is made of premium quality S50C ,P20 or better steel material, with a tolerance of +/- 0.01. This Mold Base has a pressure range of 100-1000T, ensuring a long-lasting durability of 1.000.000 shots. It is suitable for large-scale injection molding process, and is an ideal choice for those who need a reliable and durable mold base.
Specifications
Details info for mould steel
|
|
Steel Grade
|
Hardness
|
Mould life
|
|
P20
|
HRC 28-33
|
>300,000 SHOTS
|
|
718
|
HRC 33-36
|
>500,000 SHOTS
|
|
H13
|
HRC >43
|
>800,000 SHOTS
|
|
1.2344
|
HRC >48
|
>800,000 SHOTS
|
|
S136
|
HRC 48-52
|
>10,00,000 SHOTS
|
Description of Plastic Injection Mould base
|
|
Mould Material
|
#45, P20, H13, 718, 1.2738, NAK80, S136 , CENA-1 ETC.
|
|
Mould Base
|
LKM HASCO ETC
|
|
Standard componet
|
DME HASCO JIS AISI DIN
|
|
Cavity
|
Single/multi
|
|
Runner
|
Hot/cold
|
|
Mould Life
|
50,0000-1,000,000 shots
|
|
Design Software
|
UG, RROE, CAD, Soildworks etc.
|
|
Plastic Material
|
PP, PC, PE, PS, PU, ABS, PVC, PA, POM, PMMA, PET, PPR ETC
|
|
Delivery time
|
45-60 days
|
Applications:
Building mold base and spply to the mold maker build precision mold.
The Stainless Steel Injection Mold Base Precision for Thin Wall Molding is extensively used in various industries for the production of thin wall molded parts. Its precise design and durability make it ideal for applications such as:
-
Automotive Industry: Manufacturing thin wall components for automotive interiors, exterior trims, and structural parts.
-
Home Appliances: Producing thin wall parts for appliances like refrigerators, air conditioners, washing machines, and microwave ovens.
-
Packaging Industry: Creating thin wall packaging containers, lids, caps, and closures.
-
Electronics Industry: Manufacturing thin wall components for electronic devices and gadgets.
-
Medical Industry: Producing thin wall parts for medical devices and equipment.
Precision mold base start with good steel, and precision machining.
Valve add service.
- Can be do mold design for customer.
- Assist customer to order standard part, such as ejector pin core pin, water line plug, machine mold insert.
- Machining the cavity pocket, or core from A/B sold of moldbase.
Questionary
- How to order?
Please send me the drawing and require, and then we make offer the most competitive price, and deliver the moldbase after finished.
- How to maintain the quality?
A side plate and B side plate are machine by same machine, the can maintain the guide pin and bush are in same position, We do fully inspection before shipment, we can rework a new plate if dimension is reject.
- What’s the CAD file format?
X-T, STP, format is fine for us.
- How about the shipment?
We can handle the shipment by our company, we can deal with EXW, FOB, CIF and DAP term.
- How about the lead time?
For the size below 500mm, the lead time is 5-10days, for the size from 600-1200mm the lead time will be 10-15 days, for the size over 1500mm, the lead time will be about 15-20days.
But we can put you work in top priority if you order are very urgent. Lead time can be adjustable.
