Name: PCB Functional Circuit Board Test Fixture With CNC Machining
Brand: Huaview
SKU: NA
Rating: 4.8 (187 reviews)

Home Products Assembly Jig

PCB Functional Circuit Board Test Fixture With CNC Machining

Product Details:

Place of Origin:	Dongguan China
Brand Name:	Huaview
Certification:	ISO9001
Model Number:	NA

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	offer price base on the drawing
Packaging Details:	bubble pack and carton box
Delivery Time:	5-10 working days
Payment Terms:	T/T
Supply Ability:	1000 sets per week

Contact Now

Detailed Product Description

Application:	Mobile Phone Production Line	Material:	S136H
Name:	Mobile Phone Process Fixture	Packaging:	Carton
Processing Method:	CNC Machining	Size:	Customized
Structure:	Integrated	Tolerance:	±0.01mm
Highlight:	PCB Circuit Board Test Fixture , Functional Circuit Board Test Fixture , CNC Machining pcb functional test fixture

CNC Machining Manufacture Build The Precision PCB Fixture Of Cell Phone For Production Line

Specifications

Served Industries

Industrial, agricultural, military Automatic Equipment, Medical Instrument, Electronic communication, robot, optical instrument,
petrochemical, LED

Materials

Aluminum, copper/brass/bronze, iron, stainless steel, titanium alloy, POM plastic, ABS, nylon and so on.

Processing

Wire cutting, automatic cutting , drilling, tapping, stamping , CNC turning, CNC milling , CNC precision auto machining, grinding
, aluminum extrusion , Die casting,

Surface finishing

Polishing, grinding, sandblasting, anodic oxidation(anodizing), spraying (painting, powder spraying), electroplating,
electrophoresis, Black oxidation
, heat treatment, electrolytic polishing

Shipment solution

Express(DHL,Fedex, UPS,TNT,EMS),
By Sea, By air, By train, or on your requirement

Inspection

Salt spray tester
Two dimension measuring instrument
The projector
Industrial micrometer
Caliper
Height gauge
Trough through micrometer
Tool microscope

Shipment solution

Rust Preventative
PP/PE bags
Foams
Carton boxes
Wooden cases
Pallets

Technical support

Consultancy in the field of mechanical engineering
Development of projects in 2D and 3D
Production consultancy
Project Management
RFQ
Files fomats: jpg/.pdf/.dxf/.dwg/.igs./.stp/x_t. etc

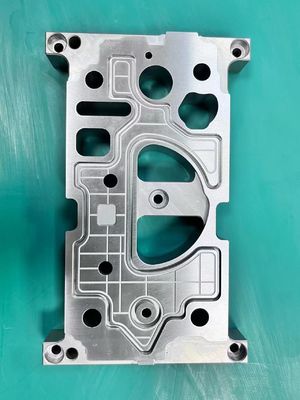

We supply the precision jig for the cell phone automation production line. This hold the main PCB in position for assemble, welding, and inspection.

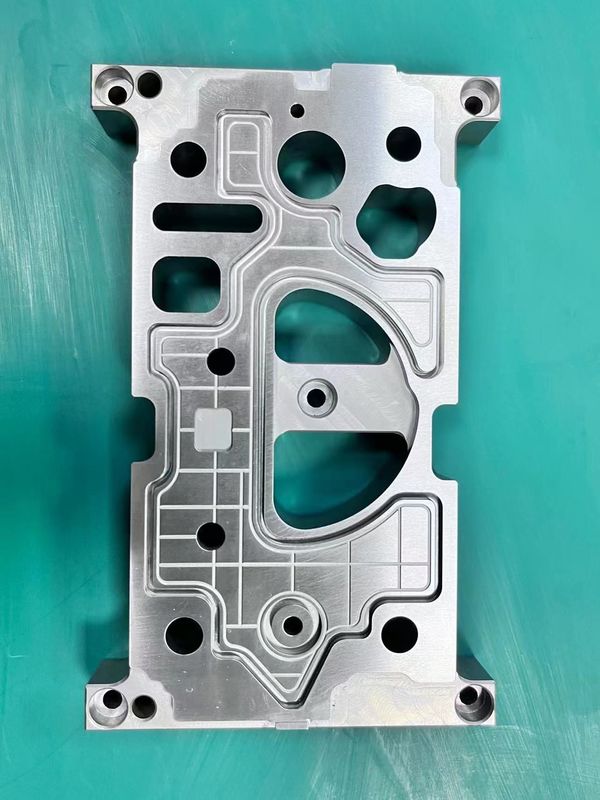

PCB Functional Circuit Board Test Fixture With CNC Machining 0
