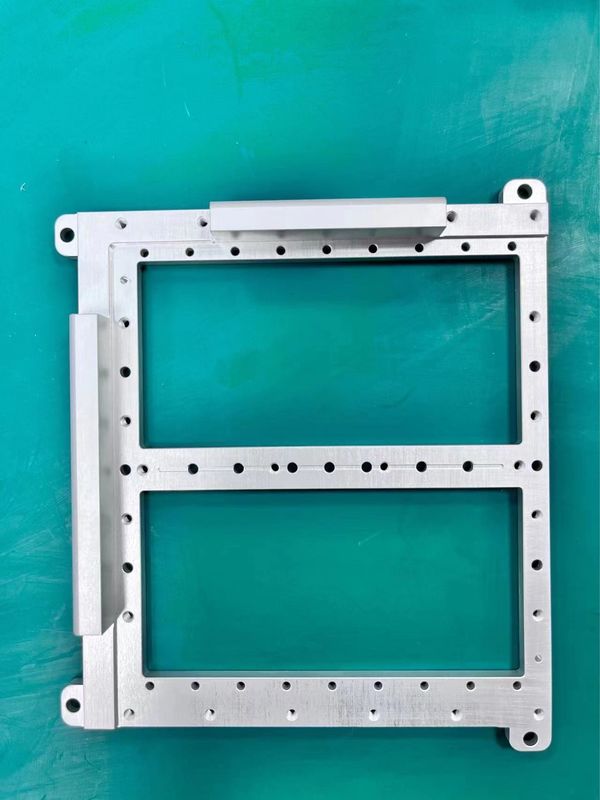

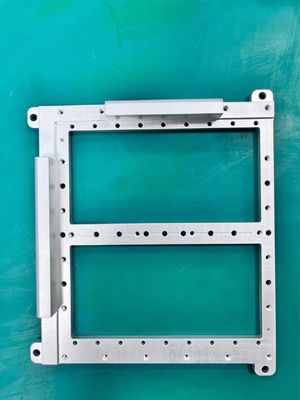

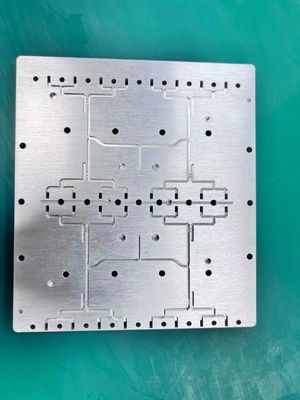

Customized Aluminum Fixture For Cell Phone Assembly Line Holding

Customized Aluminum Fixture For Cell Phone Assembly Line Holding

Customized Aluminum Fixture For Cell Phone Assembly Line Holding
  • Customized Aluminum Fixture For Cell Phone Assembly Line Holding
  • Customized Aluminum Fixture For Cell Phone Assembly Line Holding
Product Details:
Place of Origin: Dongguan China
Brand Name: Huaview
Certification: ISO9001
Model Number: NA
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: offer price base on the drawing
Packaging Details: bubble pack and carton box
Delivery Time: 5-10 working days
Payment Terms: T/T
Supply Ability: 1000 sets per week
Contact Now
Detailed Product Description
Application: Mobile Phone Production Line Material: S136H
Name: Mobile Phone Process Fixture Packaging: Carton
Processing Method: CNC Machining Size: Customized
Structure: Integrated Tolerance: ±0.1mm
Highlight:

Customized Aluminum Fixture

,

Cell Phone Aluminum Fixture

Customized Aluminum Fixture For Cell Phone Assembly Line Holding Jig



Product Description:

Mobile phone production line jigs are testing, assembly and manufacturing fixtures designed to meet precise requirements for mobile phone assembly and manufacturing. Our jigs are made with high precision tolerances of ±0.01mm and can be customized in size, design and surface treatment such as polishing to meet any mobile phone manufacturing needs.



Specifications



Part Name Mobile phone jig Machining accuracy +/- 0.005mm
Material S136H,SUS440C, A6061 SKD61 Face process Polishing /sandblast
Life spend 1,000,000 + Heat treatment Yes
File format X-T, STP, IGS, Solidwork customization According to drawing
Unit of Dimension MM, or INCH Lead time 3-10days
Process CNC,EDM,wirecut Packing air bubble bag or carton



Applications:



We supply the precision jig for the cell phone automation production line. This hold the main PCB in position for assemble, welding, and inspection.


The Assembly Line Fixtures for Cell Phone Main Body Holding are widely used in cell phone manufacturing and assembly lines. They provide a reliable and stable platform for holding the main body during various production stages, including assembly, welding, and inspection. These fixtures enhance the efficiency and accuracy of the production process, ensuring high-quality cell phones with consistent assembly standards.

Whether used in large-scale manufacturing facilities or smaller production setups, these fixtures contribute to streamlining the assembly process, reducing errors, and improving overall productivity. Their versatility and customization options make them suitable for a wide range of cell phone models and designs.

Customized Aluminum Fixture For Cell Phone Assembly Line Holding 0



Valve add service.

  1. We can help customer to do the design.
  2. Assist customer to order standard part.
  3. Can do the fitting and assemble check in case of customer order whole sets of fixture.





Questionary

  1. How to order?

Please send me the drawing and require, and then we make offer the most competitive price, and deliver the piece after finished and got the payment.

  1. How to maintain the quality?

We use the good steel bought from the regular steel agent, all steel can have the specification sheet, and do the full dimension inspection after finished machining. ship 1 piece to customer for test before start mass production.

  1. What’s the CAD file format?

X-T, STP, format is fine for us.

  1. How about the shipment?

Small part will ship via DHL or FedEx.

Big size cargo will ship with handle by forwarder, we can deal with EXW, FOB, CIF and DAP term.

  1. How about the lead time?

5-10 days for machine the insert. It depend on the size and quantity of part.
