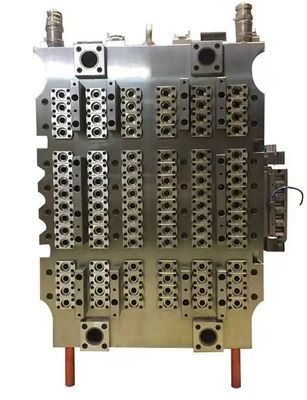

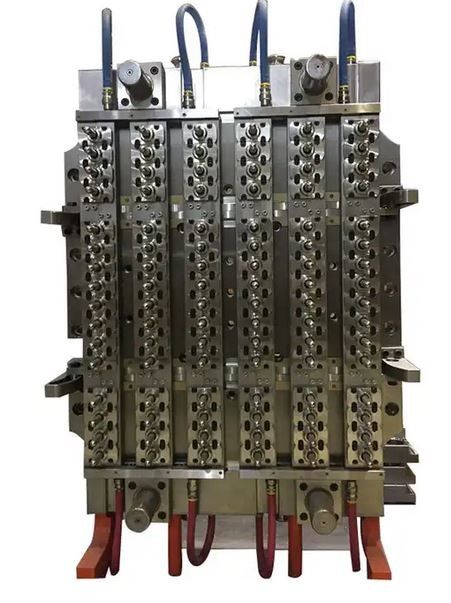

Precision Mold Base For Multi Cavity Mold Made Of P20 Steel With Very Tigh Tolerance
Product Description:
Multi cavity mold base is an essential component for producing high-precision and multiple-cavity molded parts. HuaView is an ISO9001 certified brand and has been recognized for its quality products and services. The multi cavity mold base is made from P20, S50C, S136, or H13 steel materials, providing high-precision and multiple-cavities for molding parts.
The multi-cavity mold base has a minimum order quantity of 1 set and offers pricing according to drawing. It is delivered by sea, air, or express and offers OEM/ODM services. The multi-cavity mold base has a tolerance of ±0.01mm and is vacuumized and wooden-cased for packaging.
| Mold Base Type |
CI, DI,FCI,DCI,……all is available |
Additional machining |
Drill Water line, rough machining |
| Material |
P20,S50C,NAK80,S136……… |
Outside of mold base |
Granding |
| Life shots |
1,000,000 shots |
Accessory Part |
DME,HASCO,LKM standard |
| File format |
X-T, STP, IGS, Solidwork |
Customer customization |
available |
| Unit of Dimension |
MM, or INCH |
Crane Thread |
Metric, or English |
| Hot runner need |
Yes |
Packing |
Vacuumize & wooden case packing |
Applications:
We supply mold base to the multi cavity mold maker worldwide.
Valve add service.
- Can be do mold design for customer.
- Assist customer to order standard part, such as ejector pin core pin, water line plug, machine mold insert.
- Machining the cavity pocket, or core from A/B sold of moldbase.
Questionary
- How to order?
Please send me the drawing and require, and then we make offer the most competitive price, and deliver the moldbase after finished.
- How to maintain the quality?
A side plate and B side plate are machine by same machine, the can maintain the guide pin and bush are in same position, We do fully inspection before shipment, we can rework a new plate if dimension is reject.
- What’s the CAD file format?
X-T, STP, format is fine for us.
- How about the shipment?
We can handle the shipment by our company, we can deal with EXW, FOB, CIF and DAP term.
- How about the lead time?
For the size below 500mm, the lead time is 5-10days, for the size from 600-1200mm the lead time will be 10-15 days, for the size over 1500mm, the lead time will be about 15-20days.
But we can put you work in top priority if you order are very urgent. Lead time can be adjustable.
